6. Module Support List

6.1. mipi screen

LubanCat-RK series boards support the mipi screen provided by Embedfire and Raspberry Pi 5-inch screen (requires an adapter board).

• Screen name: Embedfire mipi screen

• Screen type: LCD

• Resolution: 1080x1920

• Color: RGB888

• Interface: four-lane mipi-dsi

purchase link: (Embedfire) 5.5-inch capacitive screen 1920X1080 MIPI interface 5-point touch color depth 24-bit RGB888

• Screen name: Raspberry Pi 5-inch screen (requires an adapter board)

• Screen type: LCD

• Resolution: 800x480

• Color: RGB888

• Interface: four-lane mipi-dsi

Purchase link (for reference only): (Taobao) Raspberry Pi screen purchase link

6.2. Camera

6.2.1. mipi camera

LubanCat-RK series boards only support mipi cameras.

Currently supported are:

1. Embedfire mipi-ov5648

2. Embedfire mipi-ov8858

3. Raspberry Pi OV5647 camera (requires an adapter board)

Purchase link (for reference only):

1. (Embedfire)mipi-ov8858

2. (Taobao 1) Raspberry Pi OV5647 Camera

3. (Taobao 2) Raspberry Pi OV5647 camera

4. (Embedfire) Raspberry Pi OV5647 Adapter Board

6.2.2. uvc camera

LubanCat-RK series board supports uvc camera. If you want to buy uvc camera, you can refer to the following reference link

Purchase link (for reference only):

1. (Taobao) USB HD wide-angle camera module computer Android 1080p driver-free industrial-grade face recognition Raspberry Pi

2. (Taobao) HD 2MP 1080P 720P Drive-Free USB Camera Linux Android Ubuntu Raspberry Pi UVC

3. (Taobao) Raspberry Pi USB camera 1080P high-definition AI visual recognition 120 frames Jetson nano

4. (Taobao) 1080P high-definition usb industrial camera module wide-angle camera computer Android Raspberry Pi fisheye driver-free

5. (WHEELTEC)RGB Camera C100 Metal Housing HD Video 1080P Camera C70 Large FOV

6.3. wifi

LubanCat-RK series board supports MINI PCI-E interface and USB interface wireless network card.

NIC model	Interface	Operating frequency	maximum rate	Support protocol	AP mode	Bluetooth
MT7601U	USB	2.4GHz	150Mbps	b/g/n	not support	none
RTL8811CU	USB	5/2.4GHz	433Mbps	b/g/n/ac	support	none
RTL8821CU	USB	5/2.4GHz	433Mbps	b/g/n/ac	support	BT4.2
BCM943225	PCIE	2.4GHz	300Mbps	b/g/n	not support	BT3.0
RTL8822CE	PCIE	5/2.4GHz	866Mbps	b/g/n/ac	support	BT5.0
RTL8821CE	PCIE	5/2.4GHz	433Mbps	b/g/n/ac	support	BT4.2
RTL8821AE	PCIE	5/2.4GHz	433Mbps	b/g/n/ac	AP mode rate is low	BT4.2
RTL8723BE	PCIE	2.4GHz	150Mbps	b/g/n	AP mode rate is low	BT4.0
RTL8188CE	PCIE	2.4GHz	150Mbps	b/g/n	support	none
RTL8188EE	PCIE	2.4GHz	150Mbps	b/g/n	support	none
Intel5100	PCIE	5/2.4GHz	300Mbps	a/g/n	not support	none
Intel5300	PCIE	5/2.4GHz	450Mbps	a/g/n	not support	none
Intel6150	PCIE	2.4GHz	150Mbps	a/g/n	support	none
Intel6200	PCIE	5/2.4GHz	300Mbps	a/g/n	not support	none
Intel6300	PCIE	5/2.4GHz	450Mbps	a/g/n	not support	none
Intel7265	PCIE	5/2.4GHz	866Mbps	b/g/n/ac	only support 2.4GHz	BT4.2
Intel8260	PCIE	5/2.4GHz	866Mbps	b/g/n/ac	only support 2.4GHz	BT4.2

6.3.1. MINI PCI-E

Wireless network card with MINI PCI-E interface that has been adapted so far

Purchase link (for reference only):

1. (Embedfire)RTL8188CE

2. (Embedfire)Intel 7265AC

The following is the measured performance of iperf3

Ubuntu/debian

model	2.4G connect	5G connect	2.4G hotspot	5G hotspot
rtl8822ce	send 98/receive 102 Mbps	send 384/receive 355 Mbps	not support	not support
rtl8821ce	send 93.1/receive 81.5 Mbps	send 265/receive 210 Mbps	send 43/receive 46.3 Mbps	send 51.1/receive 50.3 Mbps
rtl8821ae	send 69.9/receive 72.5 Mbps	send 241/receive 153 Mbps	send 0.613/receive 7.7 Mbps	send 4.6/receive 37.8 Mbps
rtl8723be	send 86.5/receive 88.1 Mbps	not support	send 7.52/receive 0.7 Mbps	not support
rtl8188ce	send 44.6/receive 57.2 Mbps	not support	send 20.8/receive 18.6 Mbps	not support
rtl8188ee	send 84/receive 50 Mbps	not support	send 26.1/receive 21.3 Mbps	not support
intel5100	send 20/receive 36.6 Mbps	send 32/receive 49.9 Mbps	not support	not support
intel5300	send 25.3/receive 27.8 Mbps	send 35.2/receive 52.3 Mbps	not support	not support
intel6150	send 40.4/receive 41.5 Mbps	not support	send 7.34/receive 12.9 Mbps	not support
intel6200	send 24.1/receive 40.2 Mbps	send 35.7/receive 62.9 Mbps	not support	not support
intel6300	send 24.1/receive 34.9 Mbps	send 35.9/receive 59 Mbps	not support	not support
intel7265	send 80/receive 78 Mbps	send 404/receive 308 Mbps	send 56.9/receive 69.8 Mbps	not support
intel8260	send 73.2/receive 81.3 Mbps	send 410/receive 299 Mbps	send 61/receive 55.9 Mbps	not support

6.3.2. USB

The following is the measured performance of iperf3

Ubuntu/debian

model	2.4G connect	5G connect	2.4G hotspot	5G hotspot	Bluetooth
rtl8821cu		50Mbps		120Mbps

6.4. 4g

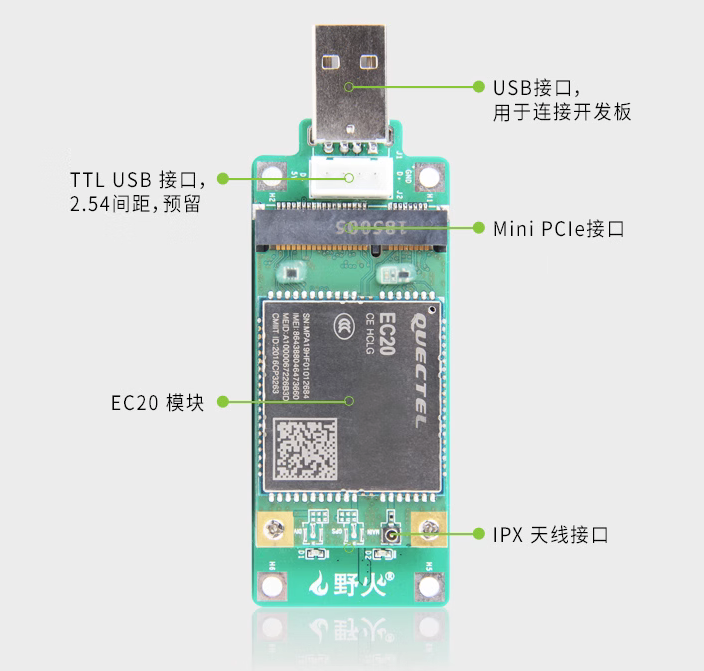

6.4.1. ec20

The 4G module supports the 4G wireless network card provided by Embedfire.

Can support two plugging modes

• MINI PCI-E interface

• Use the USB interface with the adapter board

Purchase link: Embedfire Official Store”

Instructions: “4G Module Use”

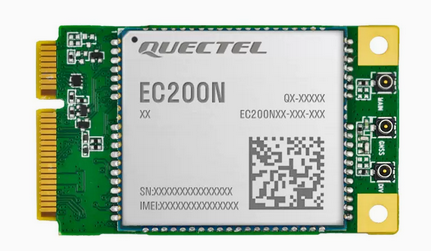

6.4.2. EC200N-CN

Can support two plugging modes

• MINI PCI-E interface

• Use the USB interface with the adapter board

purchase link: “Quectel Official Store”

Instructions: “4G Module Use”

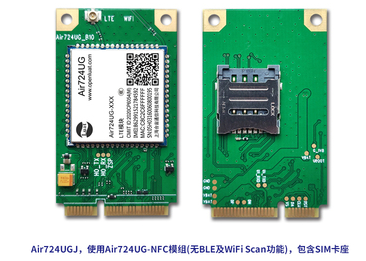

6.4.3. air724ug

• MINI PCI-E interface

purchase link: “Shanghai Hezhou LuatOS Official Enterprise Store”

Instructions: “4G Module Use”

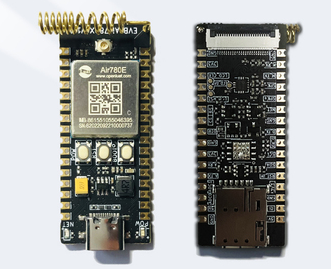

6.4.4. air780e

• usb interface

purchase link: “Shanghai Hezhou LuatOS Official Enterprise Store”

Instructions: “4G Module Use”

6.5. 5G

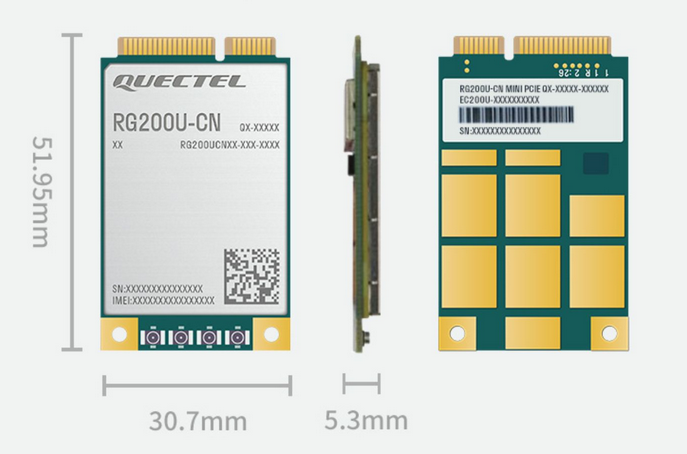

The model of the 5G module we tested is Quectel RG200U

• Quectel Official Tmall Link: click here

6.6. SATA

Some models of LubanCat-RK series boards support the installation of SATA hard drives, there are two types.

• With an adapter board, it only supports 2.5-inch disks. (it can be used with mechanical hard disks or solid-state hard disks with SATA interface)

• It needs to be matched with a SATA one-to-two cable, and supports 3.5-inch and 2.5-inch SATA interface hard drives.

For details, please go to 《SATA》

6.7. m2

注意

This interface can only be used with M2 NVMe solid-state drives

Currently tested SSD: Kioxia RC20 256G version

6.8. msata

At present, all boards with mini-pcie interface on the LubanCat board support msata hard disk.
