LubanCat-2 series hardware introduction¶
LubanCat-2¶
Product description¶
LubanCat-2 is a low power consumption, high-performance single-board computer designed by Embedfire Technology based on RockChip RK3568.
LubanCat-2 uses a SOC including quad-core Cortex-A55 processor, Mali G52 2EE graphics processor and energy-efficient NPU, with dual Gigabit Ethernet ports, HDMI, USB3.0, MINI PCI-E, M.2 Interface, MIPI and other peripherals. While exporting interfaces with high utilization rate, some interfaces and peripherals with low utilization rate are deleted, so that the board area is significantly reduced. And reserving general-purpose interfaces such as USB, MINI PCI-E, M.2, etc. to further expand the use scenarios of the board. The small body can also burst out great performance.
This enables LubanCat-2 not only to be used as a high-performance single-board computer, but also as an embedded motherboard for various scenarios such as display, control, network transmission, file storage, and edge computing.
The LubanCat-2 board provides a complete SDK driver development kit, design schematic diagram and other resources, which not only helps users to further apply the board, but also greatly reduces the secondary development time based on this board and speeds up the launch of products.
Examples of application scenarios for LubanCat-2 boards:
Smart stand-alone small computer with functions of office, education, programming development, embedded development, etc.
Personal git warehouse, server, nas, soft router, private cloud
Projects such as robots and drones
TV box, smart home hub, home security monitoring, smart speakers and other smart devices
LubanCat-2 board hardware resources¶

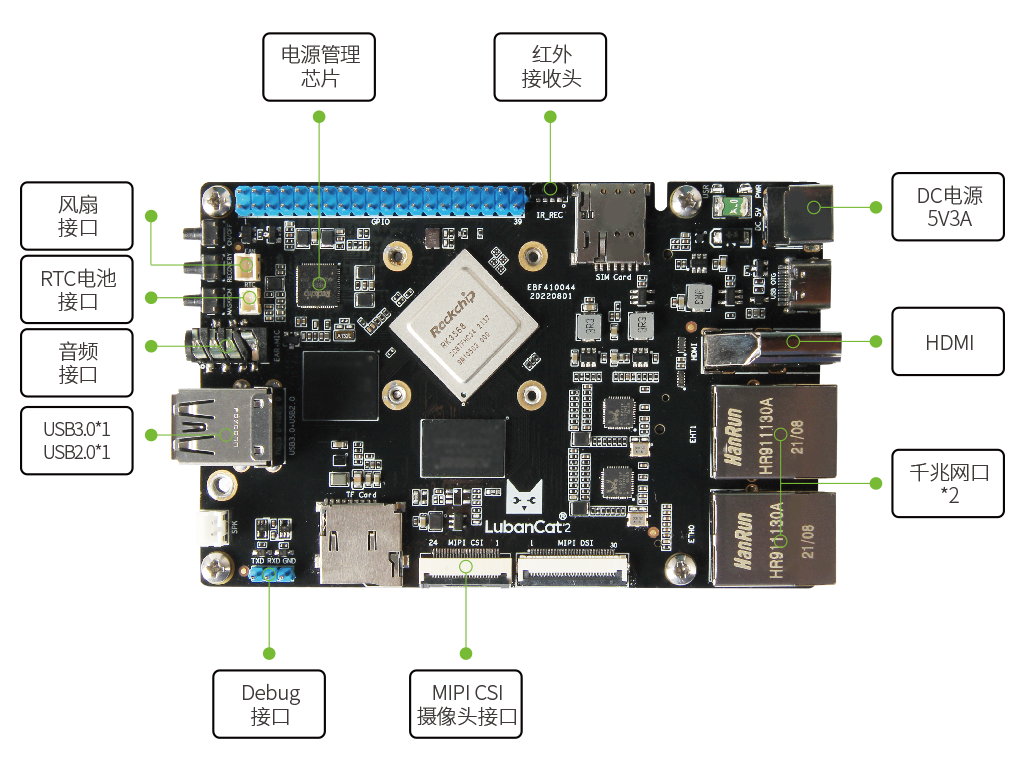

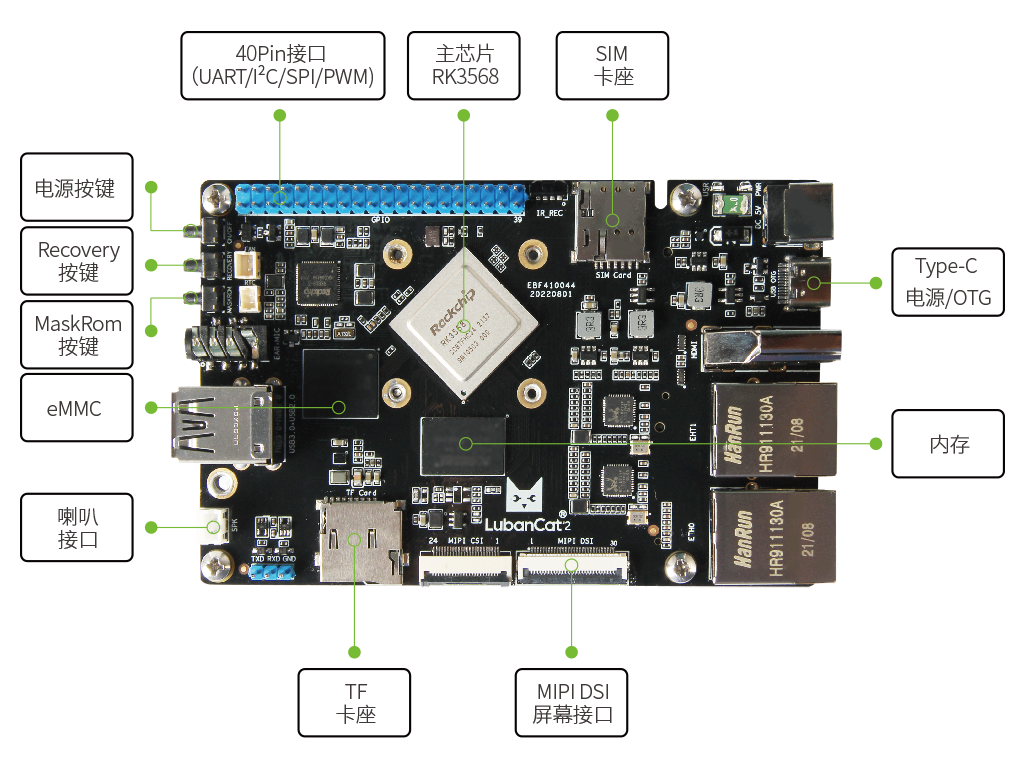

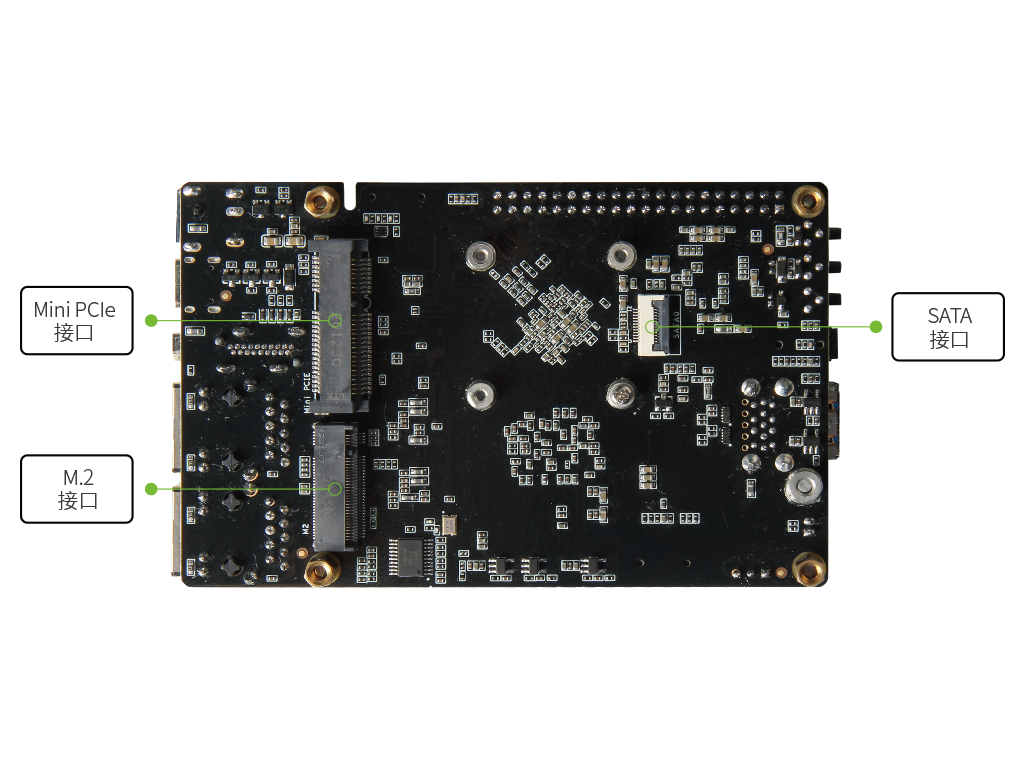

LubanCat-2 board hardware resources are shown in the figure:

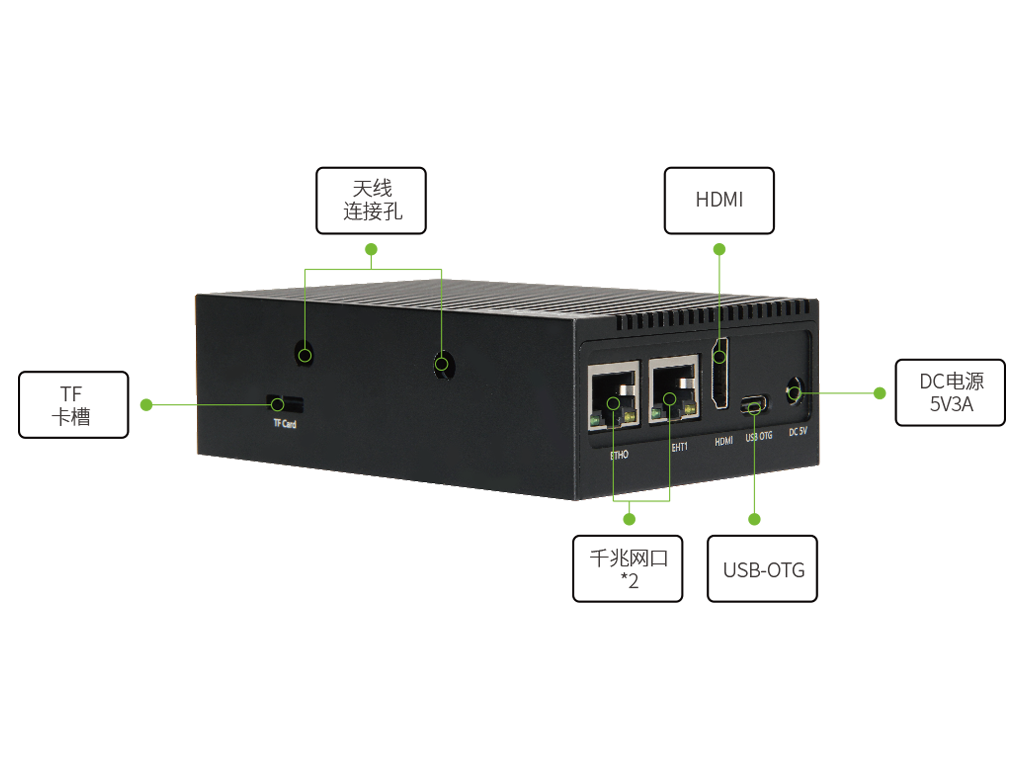

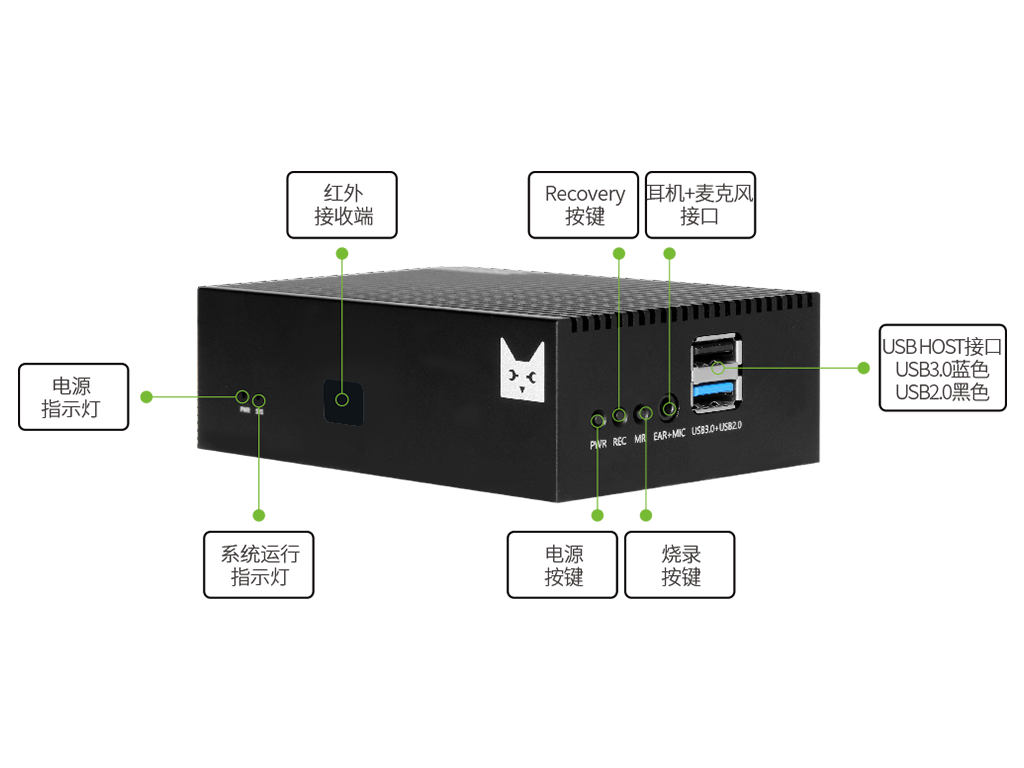

Shell diagram:
LubanCat-2 board hardware resource list:
Board name |
LubanCat-2 |
Power interface |
|
Main chip |
RK3568 (quad-core Cortex-A55, 2GHz, Mali-G52) |
Memory |
LPDDR4/4X-1/2/4/8GB |
Storage |
eMMC-8/32/64/128GB |
Ethernet |
10/100/1000M adaptive Ethernet port x2 |
USB2.0 |
Type-A interface x1 (HOST) |
USB2.0 |
Type-C interface x1 (OTG), firmware burning interface, shared with the power interface |
USB3.0 |
Type-A interface x1 (HOST) |
Debug serial port |
One debug serial port, the default parameter is 1500000-8-N-1 |
Button |
ON/OFF (power button), MR (MaskRom), REC (Recovery) |
Audio interface |
Headphone output + microphone input 2 in 1 interface |
SPK speaker interface |
Speaker interface, support 1W power output |
40Pin interface |
Compatible with Raspberry Pi 40Pin interface, supports PWM, GPIO, I2C, SPI, UART functions |
M.2 interface |
M.Key, PCIE3.0x2Lanes, can insert 2280 specification NVME solid state drive |
MINI-PCIE interface |
Can be used with full-height or half-height WIFI network card, 4G module or other MINI-PCIE interface modules |
SATA interface |
Needs to be used with an adapter board, which can support SATA interface hard drives powered by 5V |
SIM card interface |
Needs to be used with 4G module |
HDMI2.0 |
display interface, support dual-screen display with MIPI-DSI |
MIPI-DSI |
MIPI screen interface, support dual-screen display with HDMI2.0 |
MIPI-CSI |
Camera interface |
TF card holder |
Support TF card to start the system, up to 512GB |
Infrared receiving |
Support infrared remote control |
RTC battery interface |
Supports RTC function |
Fan interface |
Supports the installation of fans for heat dissipation |
LubanCat-2-V1¶
LubanCat-2-V1 is a modified version of LubanCat-2, which modifies a 40pin gpio and adds sleep wake-up function.

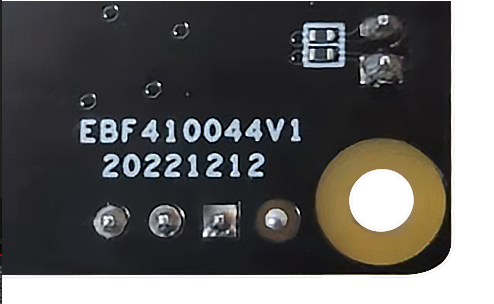

To identify LubanCat-2-V1, check the silkscreen on the back of the board.
If it is EBF410044V1, it is the V1 version
LubanCat-2N¶
product description¶

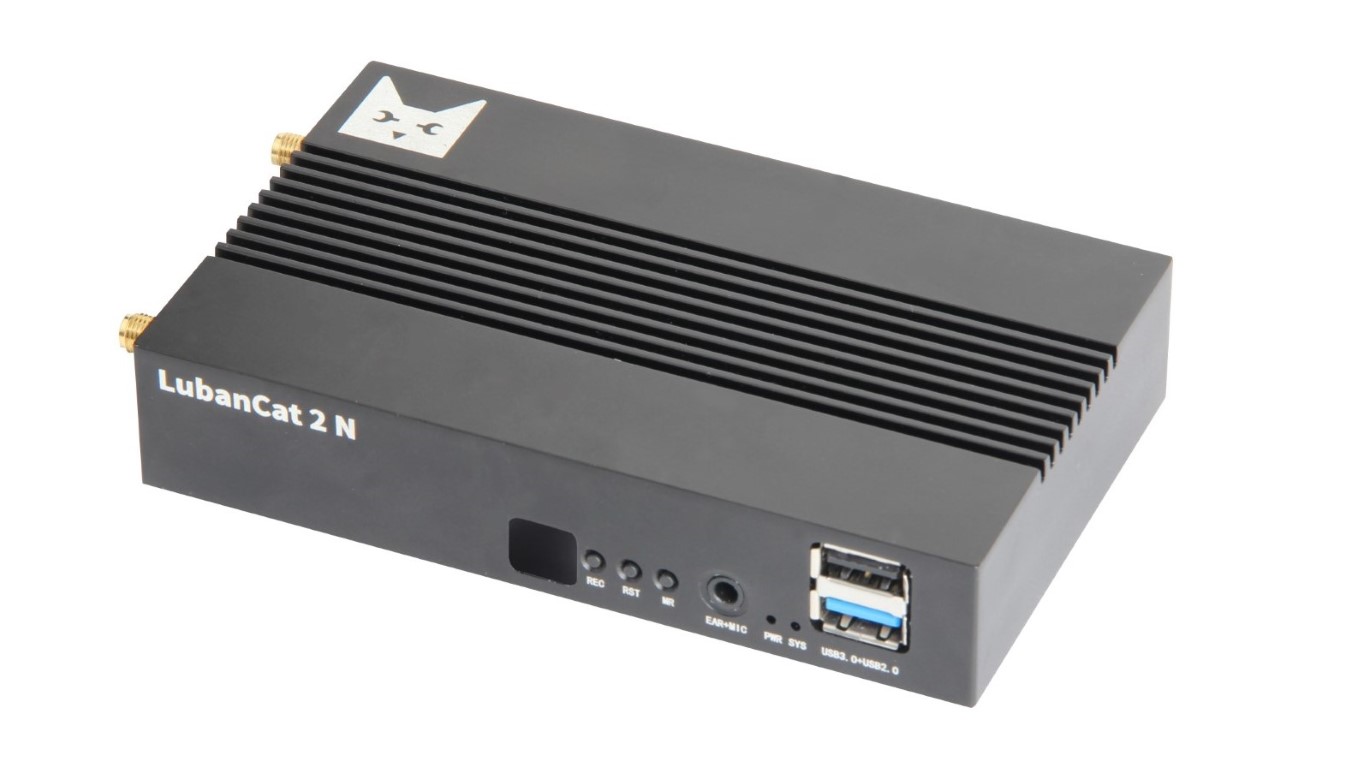

LubanCat-2N is a low power consumption, high-performance soft router designed by Embedfire Technology based on RockChip RK3568.
LubanCat-2N uses a SOC including quad-core Cortex-A55 processor, Mali G52 2EE graphics processor and high-energy-efficiency NPU. The design of four network ports can give full play to the network performance of the processor, and at the same time export USB, MINI PCI -E and other common interfaces can be used as soft routers, file storage servers, and small WEB servers.
The LubanCat-2N board provides a customized and optimized OpenWrt system, and its schematic diagram and source code are all open source.
LubanCat-2N board hardware resources¶

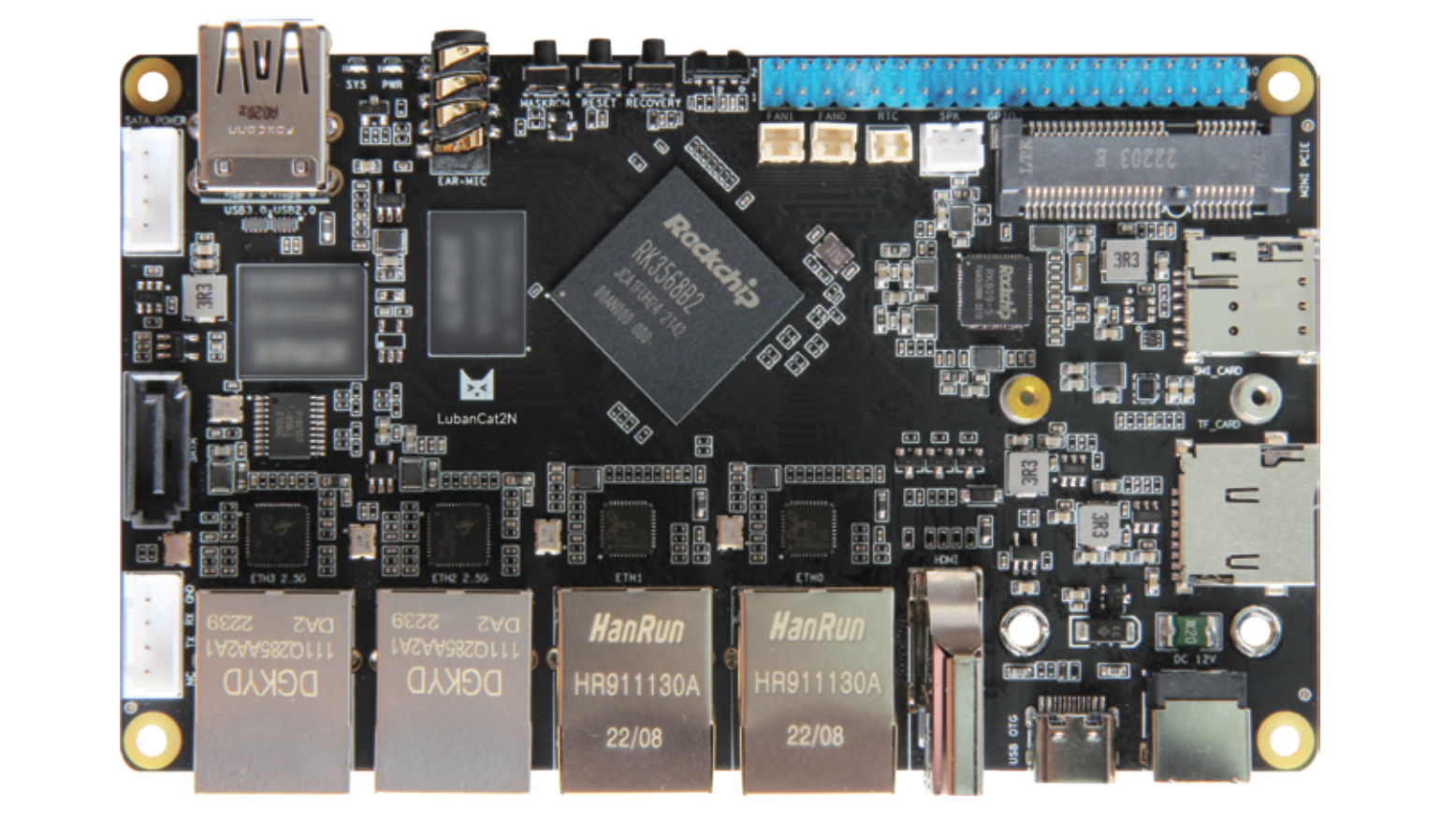

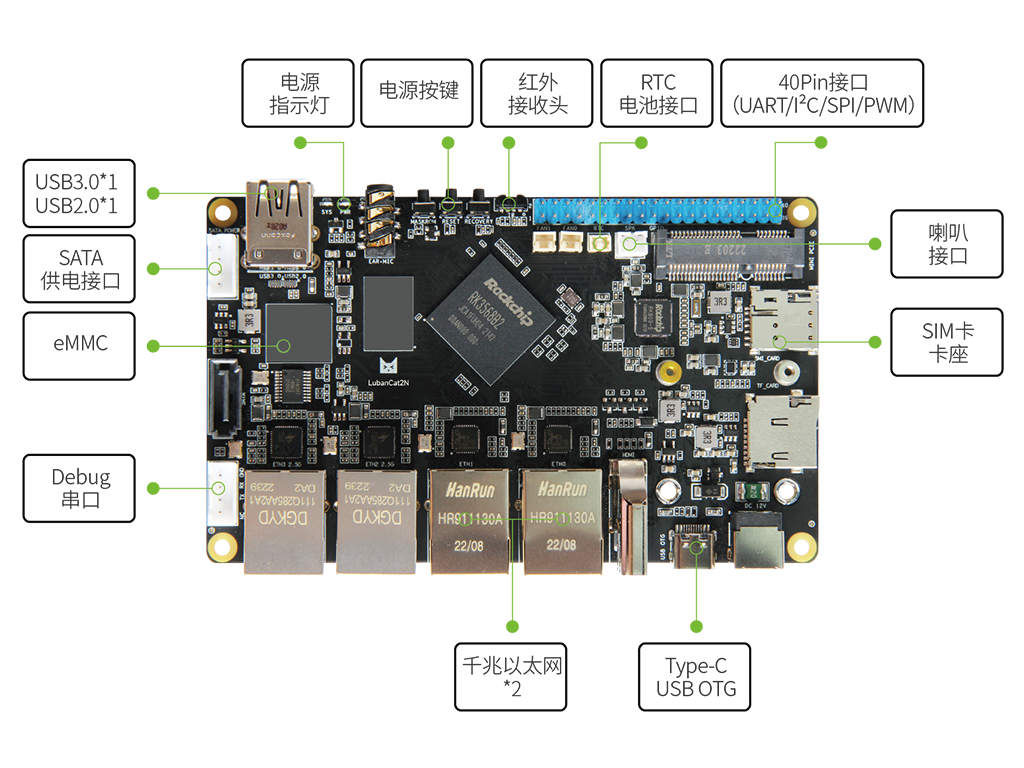

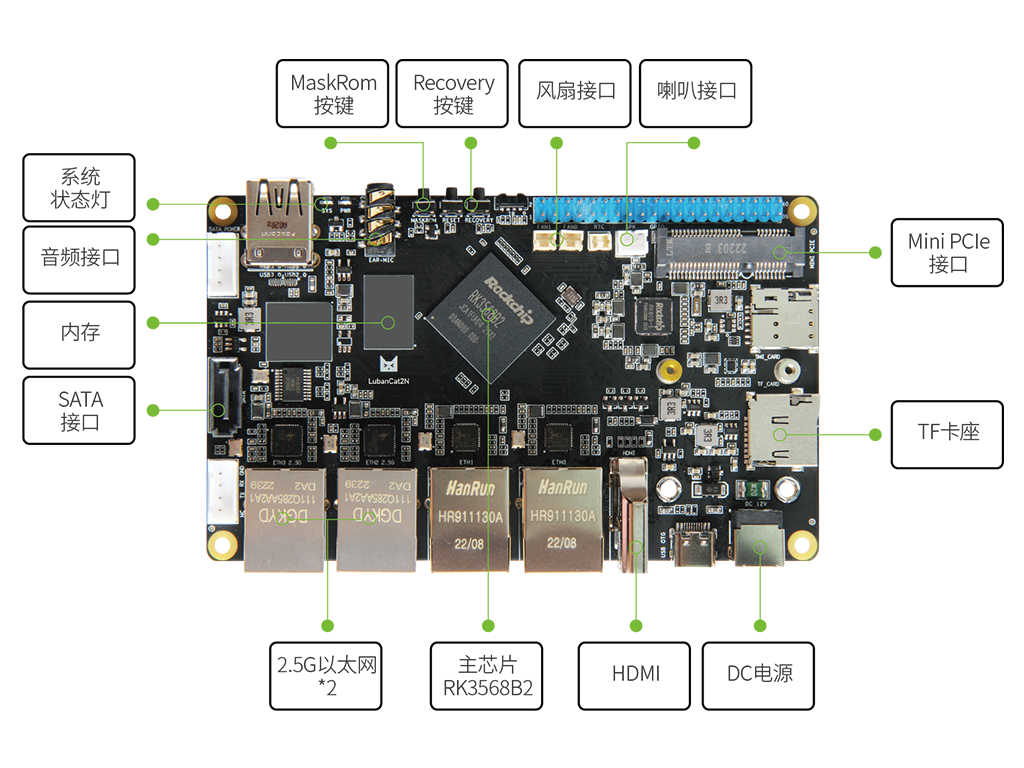

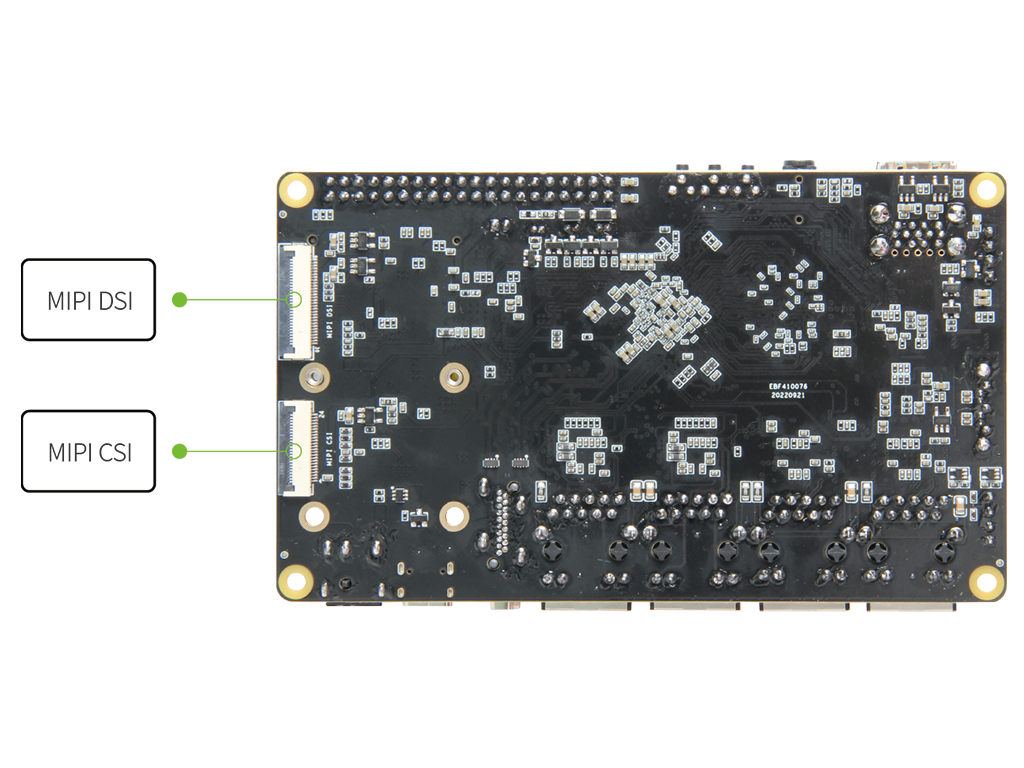

The hardware resources of the LubanCat-2N board are shown in the figure:

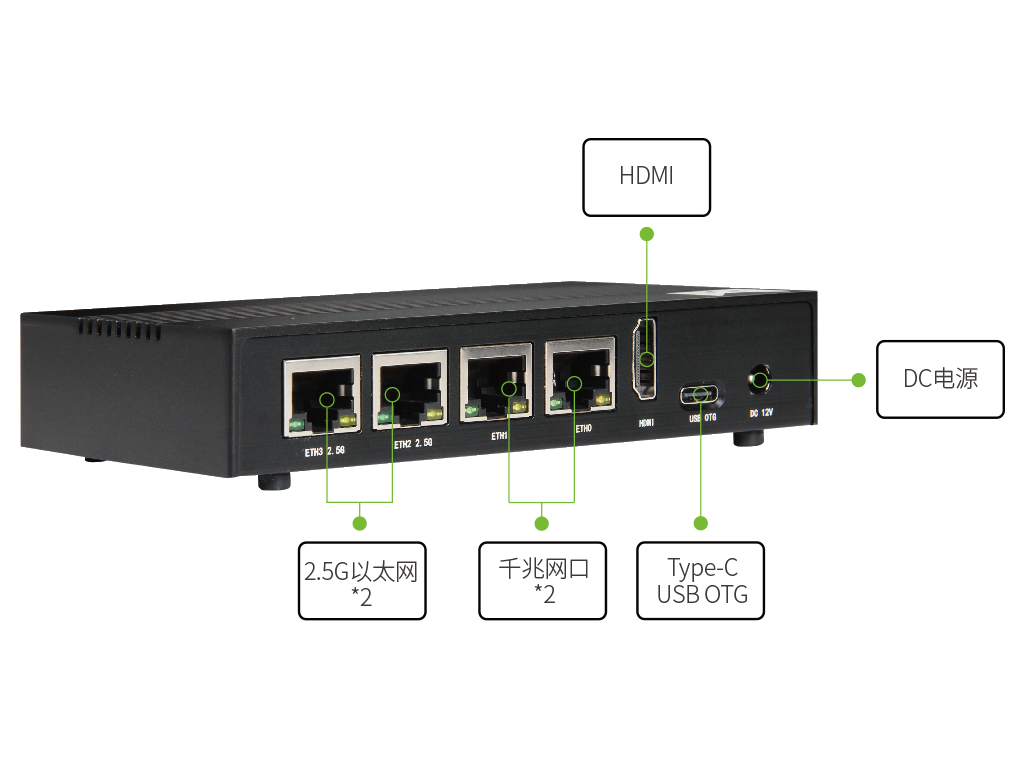

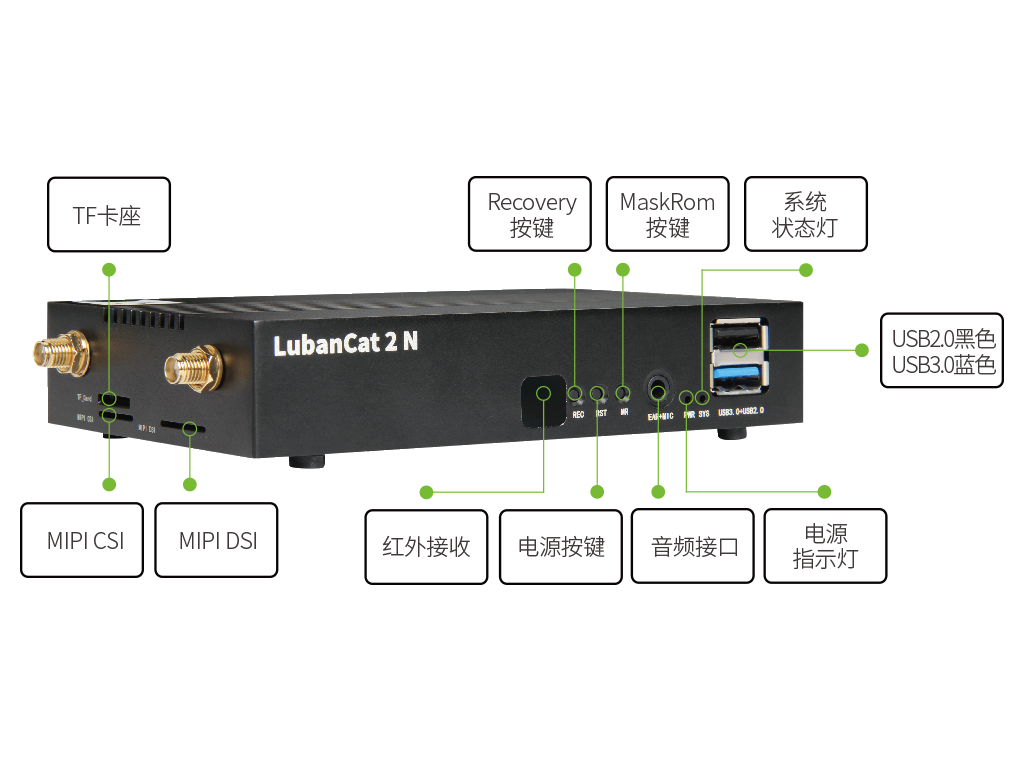

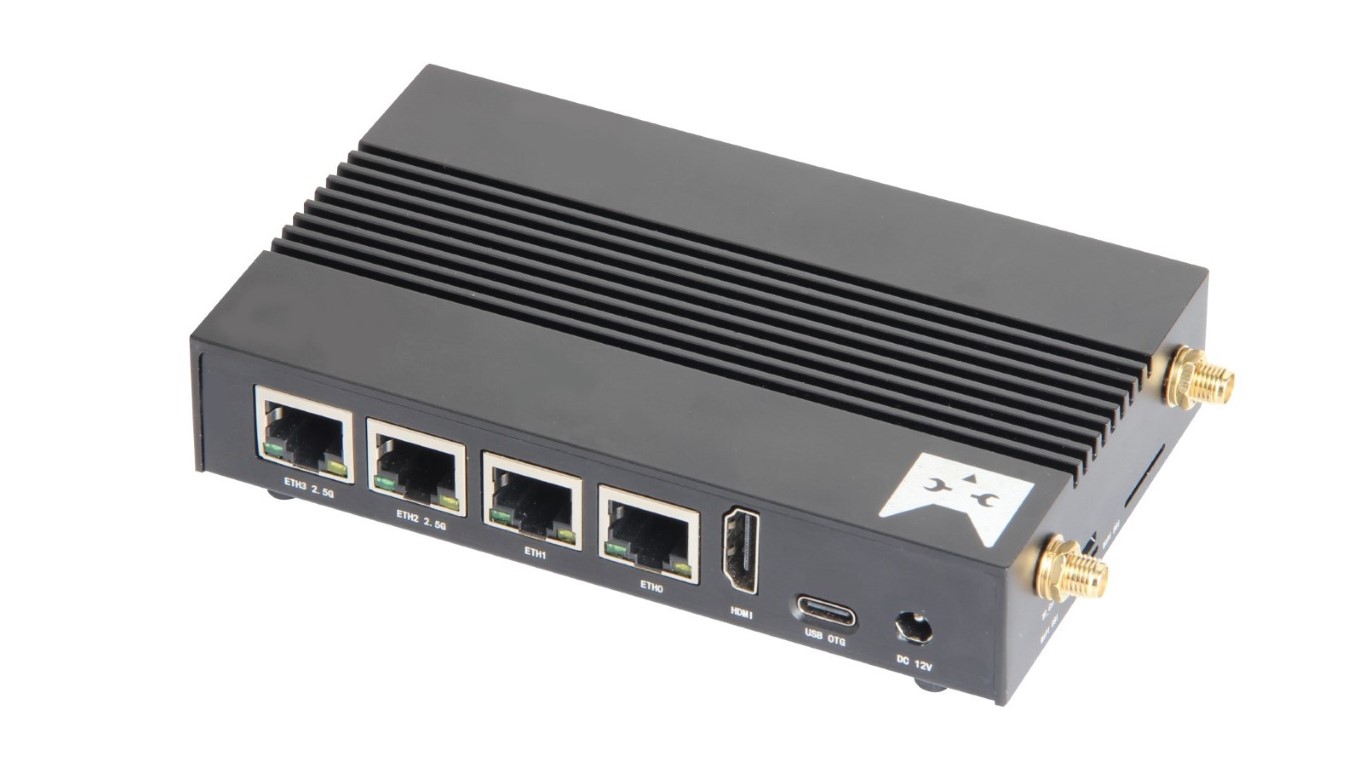

Shell label drawing:
LubanCat-2N board hardware resource table:
Board name |
LubanCat-2N |
Power interface |
DC12V@2A DC input |
Main chip |
RK3568 (quad-core Cortex-A55, 2GHz, Mali-G52) |
Memory |
LPDDR4/4X-1/2/4/8GB |
Storage |
eMMC-8/32/64/128GB |
Ethernet |
Gigabit Ethernet port x2+2.5G Ethernet card x2 |
USB2.0 |
Type-A interface x1 (HOST) |
USB2.0 |
Type-C interface x1 (OTG), firmware burning interface |
USB3.0 |
Type-A interface x1 (HOST) |
Debug serial port |
One debug serial port, the default parameter is 1500000-8-N-1 |
Button |
ON/OFF (power button), MR (MaskRom), REC (Recovery) |
Audio interface |
Headphone output + microphone input 2 in 1 interface + 1W speaker interface |
SPK speaker interface |
Speaker interface, support 1W power output |
40Pin interface |
Compatible with Raspberry Pi 40Pin interface, supports PWM, GPIO, I2C, SPI, UART functions |
MINI-PCIE |
Interface can be used with full-height or half-height WIFI network card, 4G module or other MINI-PCIE interface modules |
SIM card |
Interface for use with 4G module |
HDMI2.0 |
Display interface, support dual-screen display with MIPI-DSI |
MIPI-DSI |
MIPI screen interface, support dual-screen display with HDMI2.0 |
MIPI-CSI |
Camera interface |
SATA interface |
Standard SATA interface |
Hard disk power |
Supply interface supports 12V output |
TF card holder |
Support TF card to start the system, up to 512GB |
Infrared receiving |
Support infrared remote control |
RTC battery interface |
Supports RTC function |
Fan interface |
Supports the installation of fans for heat dissipation |
LubanCat-2 Card Edge Connector¶
Product description¶
LubanCat-2 Card Edge Connector is a low power consumption, high-performance core board designed by Embedfire Technology based on RockChip RK3568, exporting the Card Edge Connector pins.
The LubanCat-2 Card Edge Connector core board uses a SOC including a quad-core Cortex-A55 processor, Mali G52 2EE graphics processor and high-energy-efficiency NPU. The onboard large-capacity eMMC and DDR chips realize chip maximize the extraction of peripherals. Using the core board can effectively reduce development time, reduce development difficulty, and enable developers to focus more on the product itself.
The LubanCat-2 Card Edge Connector core board provides a complete SDK driver development kit, design schematic diagram, baseboard design reference guide and other materials, which can help users quickly complete the initial product platform construction.
LubanCat-2 Card Edge Connector core board hardware resources¶
The hardware resources of LubanCat-2 Card Edge Connector core board are shown in the figure:
LubanCat2 Card Edge Connector core board hardware resource list:
Connector |
314PinsMXM connector, model: AS0B821-S55B-7H |
Main chip |
RK3568 (quad-core Cortex-A55, 2GHz, Mali-G52) |
IO |
314 card edge connector, 0.5MM spacing, leading to all IO |
Memory |
LPDDR4/4X-1/2/4/8GB |
Storage |
eMMC-8/32/64/128GB |
LubanCat2 Card Edge Connector baseboard¶
Product description¶
The LubanCat2 card edge connector baseboard is a full-featured baseboard designed by Embedfire Technology based on the LubanCat-2CF core board.
The LubanCat2 card edge connector baseboard is connected to the LubanCat-2CF core board through a connector, which makes full use of the pin resources provided by the LubanCat-2CF core board and maximizes the use of resources. It can be used as a reference base for LubanCat-2CF core board product development to achieve rapid development.
LubanCat2 card edge connector baseboard provides a complete SDK driver development kit, design schematic diagram, package library and other materials, which can help users quickly complete the baseboard design based on LubanCat-2CF core board.
LubanCat2 card edge connector baseboard hardware resources¶
The hardware resources of LubanCat2 card edge connector board are shown in the figure:
LubanCat2 card edge connector board hardware resource table:
Power interface |
12V@1A (1A and above) DC input, DC interface |
Ethernet |
10/100/1000M adaptive Ethernet port*2 |
HDMI |
HDMI2.0 screen interface, support dual-screen different display |
MIPI-DSI |
MIPI screen interface*2, can be plugged into Embedfire MIPI screen, supports dual-screen different display |
MIPI-CSI |
MIPI camera interface*2, can be plugged into Embedfire OV8858 camera |
eDP |
eDP1.3 screen interface*1, eDP touch interface*1; support dual-screen different display |
USB2.0 |
Type-A interface*3 (HOST); Type-C interface*1 (OTG), for firmware burning interface |
USB3.0 |
Type-A interface*1(HOST) |
M.2 interface |
SSD M.Key type, PCIe3.0*2Lanes, can insert 2280 specification NVME SSD |
PCIe interface |
Mini-PCIe interface, can be used with full-height or half-height WIFI network card, 4G module or other Mini-PCIe interface modules |
SIM card holder |
The SIM card function needs to be used with a 4G module |
SATA interface |
Standard SATA interface |
SATA power supply interface |
supports 12V output |
CAN |
CAN*2 |
ADC |
ADC acquisition interface*1 |
Serial port |
Debug serial port*1 (UART2) |
Serial port |
LVTTL serial port*2 (UART7&UART9) |
Serial port |
RS232*2 (UART7&UART9) |
Serial port |
RS485*2 (UART3&UART4) |
TF card holder |
Support Micro SD (TF) card to start the system, up to 512GB |
Audio audio |
output, 3.5mm audio seat*1 (red) |
Audio audio |
input, 3.5mm audio socket*1 (green) |
Audio |
MIC microphone interface*1 |
Audio |
SPK speaker interface*1, can be connected to 1W power speaker |
Button |
Power button; MaskRom button; Recovery button |
Infrared receiver |
supports infrared remote control function |
RTC |
RTC power socket*1 |
Fan interface |
supports the installation of a 5V fan for heat dissipation |
LubanCat-2-BTB¶
Product description¶
LubanCat-2-BTB is a low-power, high-performance core board designed by Embedfire Technology based on RockChip RK3568, leading to BTB pins.
The LubanCat-2-BTB core board uses a SOC including a quad-core Cortex-A55 processor, a Mali G52 2EE graphics processor and a high-efficiency NPU, and has a large-capacity eMMC and DDR chip on board. The maximum lead-out of chip peripherals is realized through card edge connector pins. The use of the core board can effectively reduce the development time and difficulty of development, allowing developers to focus more on the product itself.
The LubanCat-2-BTB core board provides a complete SDK driver development kit, design schematic diagram, baseboard design reference guide and other materials, which can help users quickly complete the initial product platform construction.
LubanCat-2-BTB core board hardware resources¶

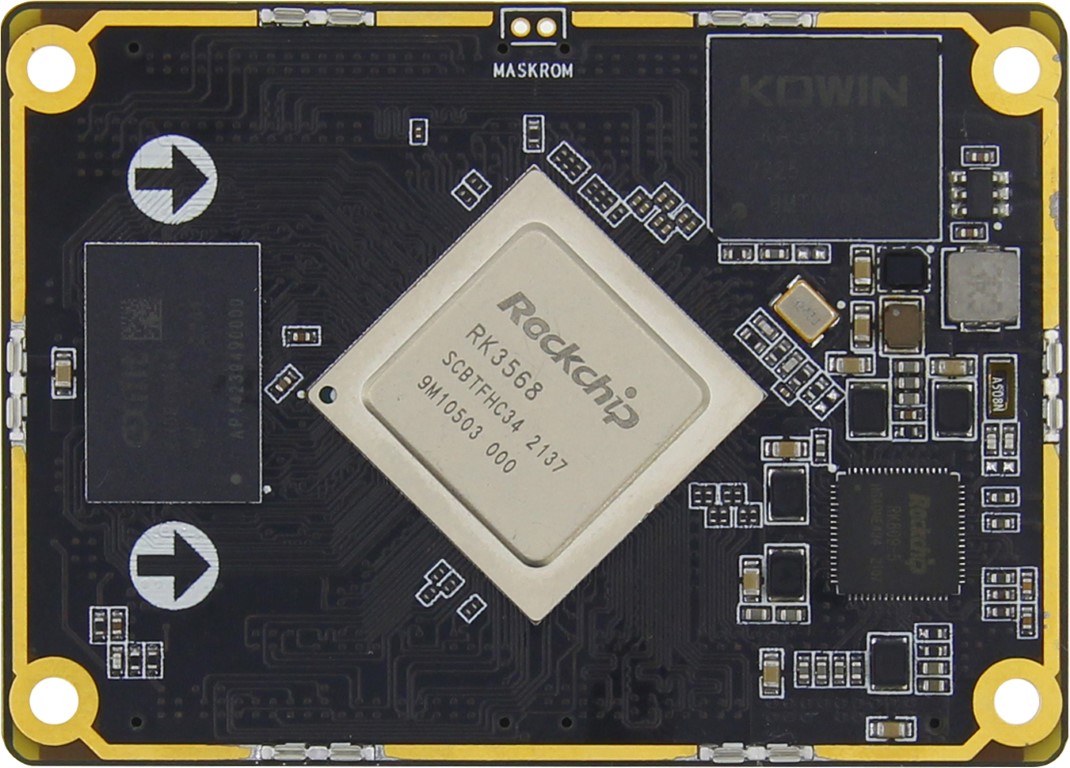

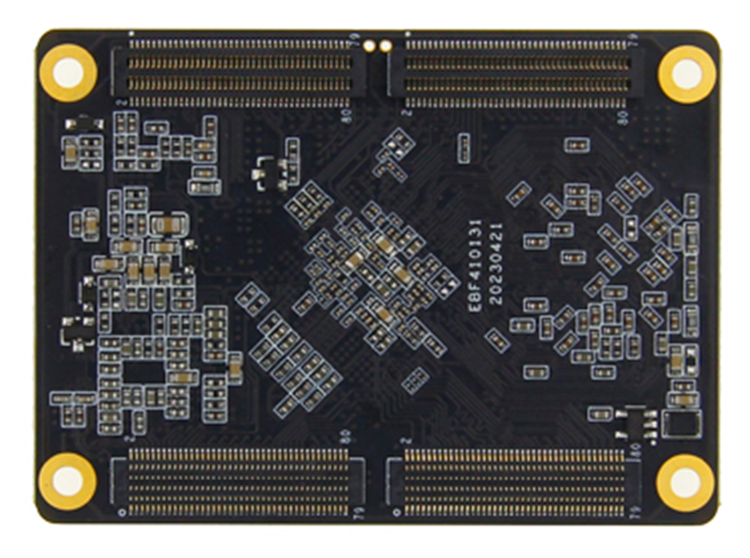

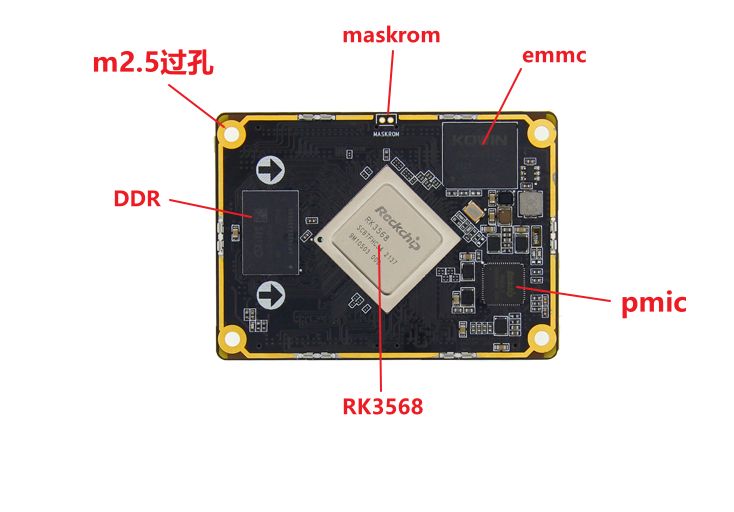

The hardware resources of the LubanCat-2-BTB core board are shown in the figure:
LubanCat2-BTB core board hardware resource list:
Connector |
plug: SGDBM-05-80P-H10 receptacle: SGDBF-05-80P-H30 |
Main chip |
RK3568 (quad-core Cortex-A55, 2GHz, Mali-G52) |
IO |
BTB leads to 320 pins |
Memory |
LPDDR4/4X-1/2/4/8GB |
Storage |
eMMC-8/32/64/128GB |
LubanCat2-BTB base board¶
Product description¶
The LubanCat2-BTB base board is a full-featured baseplate designed by Embedfire Technology based on the LubanCat-2CF core board.
The LubanCat2-BTB baseboard is connected to the LubanCat-2CF core board through a connector, which makes full use of the pin resources provided by the LubanCat-2-BTB core board and maximizes the use of resources. It can be developed as a LubanCat-2-BTB core board product reference baseboard for rapid development.
The LubanCat2-BTB baseboard provides a complete SDK driver development kit, design schematic diagram, package library and other materials, which can help users quickly complete the baseboard design based on the LubanCat-2-BTB core board.
LubanCat2-BTB Baseboard Hardware Resources¶
The hardware resources of the LubanCat2-BTB baseboard are shown in the figure:
注意
The resource of LubanCat2-BTB baseboard is the same as the card edge connector’s. Here we first use card edge connector baseboard as resource for labeling.
LubanCat2-BTB baseboard hardware resource table:
Power interface |
12V@1A (1A and above) DC input, DC interface |
Ethernet |
10/100/1000M adaptive Ethernet port*2 |
HDMI |
HDMI2.0 screen interface, support dual-screen different display |
MIPI-DSI |
MIPI screen interface*2, can be plugged into Embedfire MIPI screen, supports dual-screen different display |
MIPI-CSI |
MIPI camera interface*2, can be plugged into Embedfire OV8858 camera |
eDP |
eDP1.3 screen interface*1, eDP touch interface*1; support dual-screen different display |
USB2.0 |
Type-A interface*3 (HOST); Type-C interface*1 (OTG), for firmware burning interface |
USB3.0 |
Type-A interface*1(HOST) |
M.2 interface |
SSD M.Key type, PCIe3.0*2Lanes, can insert 2280 specification NVME SSD |
PCIe interface |
Mini-PCIe interface, can be used with full-height or half-height WIFI network card, 4G module or other Mini-PCIe interface modules |
SIM card holder |
The SIM card function needs to be used with a 4G module |
SATA interface |
Standard SATA interface |
SATA power supply interface |
Supports 12V output |
CAN |
CAN*2 |
ADC |
ADC acquisition interface*1 |
Serial port |
Debug serial port*1 (UART2) |
Serial port |
LVTTL serial port*2 (UART7&UART9) |
Serial port |
RS232*2 (UART7&UART9) |
Serial port |
RS485*2 (UART3&UART4) |
TF card holder |
Support Micro SD (TF) card to start the system, up to 512GB |
Audio audio |
Output, 3.5mm audio seat*1 (red) |
Audio audio |
Input, 3.5mm audio socket*1 (green) |
Audio MIC |
Microphone interface*1 |
Audio SPK |
Speaker interface*1, can be connected to 1W power speaker |
Button |
Power button; MaskRom button; Recovery button |
Infrared receiver |
Supports infrared remote control function |
RTC |
RTC power socket*1 |
Fan interface |
Supports the installation of a 5V fan for heat dissipation |
