1. Introduction to LubanCat Series Boards

Video introduction to this chapter:

../../_images/video.png

“01-What is a Lubancat”

https://www.bilibili.com/video/BV1iX4y127Mg/

../../_images/lubancat1.png

LubanCat is a brand of Linux and Android card computer series launched by Embedfire Technology. This series of card computers has a rich product line of hardware, a high degree of adaptability to the operating system, a large number of open source teaching materials, and simple application development.

With its superior performance and multiple product lines covering education, commercial applications, industrial control and other fields, it has a wide range of application scenarios:

  • Card computer: office, programming development, home entertainment, programming education, etc.

  • Linux server: private cloud, soft router, NAS, personal WEB server, etc.

  • Home intelligent hub: TV box, smart home control, sensor data analysis, security monitoring, etc.

  • Industrialization: electronic billboards, vending machines, robots, drones, etc.

  • Embedded development board: speed up embedded project verification and development.

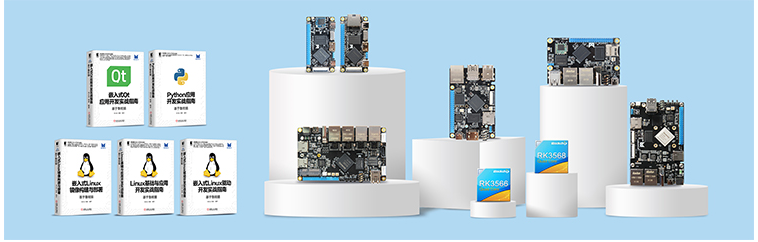

../../_images/lubancat_all.png

LubanCat series computers provide a wealth of information and versions from hardware to systems, teaching materials, and applications, with strong versatility:

  • Hardware: master control with different performance, peripheral interface, storage capacity, board size.

  • System: Support Ubuntu, Debian, OpenWrt, Android, OpenHarmony and other systems.

  • Teaching materials: Provide multiple sets of teaching materials, covering pure application layer users and system development users, such as Python, Qt, Android application development, Linux system use and kernel, driver, image production.

  • Application: Provide various application examples for the upper layer, such as using C/Python to control various hardware, application development based on ROS robot system.

Complete open source materials, including but not limited to product manuals, system source codes, schematic packaging libraries, various high-quality Linux development tutorials, etc. Even beginners in the embedded industry who are new to the industry can complete the development according to our tutorials, and for experienced embedded veterans, it can speed up the secondary development process of products.

2. Introduction to LubanCat-RK Series Boards

Video introduction to this chapter:

../../_images/video.png

“02-LubanCat Supporting Information Introduction”

https://www.bilibili.com/video/BV1XX4y127v7/

LubanCat-Rockchip (LubanCat-RK) series is a series of card computers developed by Embedfire based on Rockchip high-performance processors. With the superior performance and multi-product line strategy of LubanCat, it can cover a wide range of scenarios.

LubanCat-RK series includes three sub-series, using RK3566/RK3568 main chip with different peripherals to meet different usage requirements.

  1. LubanCat-Zero series: use RK3566 processor

  • LubanCat-Zero-W(Wireless): A high-performance mini board with 802.11b/g/n/ac+BT4.2 wireless module and compact size, aimed at makers and entry-level developers, with high cost performance.

  • LubanCat-Zero-N(Network): A high-performance mini board with a Gigabit Ethernet port and a small size, cost-optimized, oriented to makers and entry-level developers, and extremely cost-effective.

  1. LubanCat-1 series: use RK3566 processor

  • LubanCat-1: An all-in-one board with balanced configuration, small size, powerful performance, and high cost performance.

  • LubanCat-1N: Dual network port version, focusing on network processing, can be used as an intelligent gateway with OpenWrt system.

  • LubanCat-1M: The core board of the Card Edge Connector version, which can be used for rapid custom development based on this core board.

  • LubanCat-1IO: The supporting baseboard of the Card Edge Connector core board, with sufficient peripherals, can be used as a reference for the external circuit of the core board.

  1. LubanCat-2 series: use RK3568 processor

  • LubanCat-2: An all-in-one board with balanced configuration, small size, powerful performance, and strong scalability.

  • LubanCat-2N: 4 network port version, focusing on network processing, can be used as an intelligent gateway with OpenWrt system.

  • LubanCat-2CF: The Card Edge Connector version of the core board, which can be quickly customized and developed based on this core board.

  • LubanCat-2IOF: The supporting baseboard of the Card Edge Connector core board, with sufficient peripherals, can be used as a reference for the external circuit of the core board.

The difference between RK3568 and RK3566

  • Compared with the RK3566 processor, the RK3568 processor has a higher main frequency, more peripherals, and more powerful performance.

  • RK3568 can support up to 3 different displays, while RK3566 only supports MIPI or HDMI display alone.

  • While the RK3566 processor has the same CPU and GPU specifications as the RK3568 processor, it has become very cost-effective because of the lack of some expensive peripheral IP.

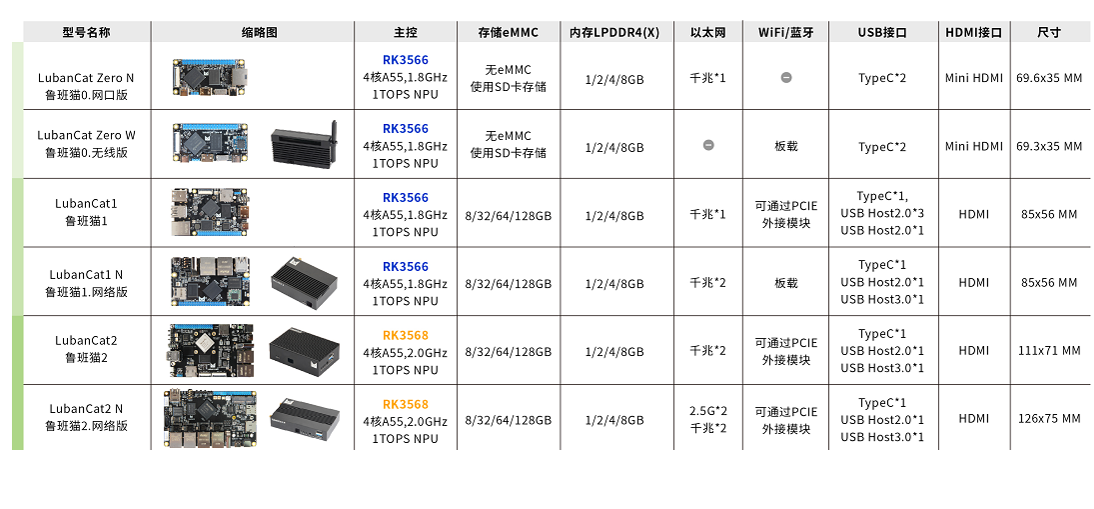

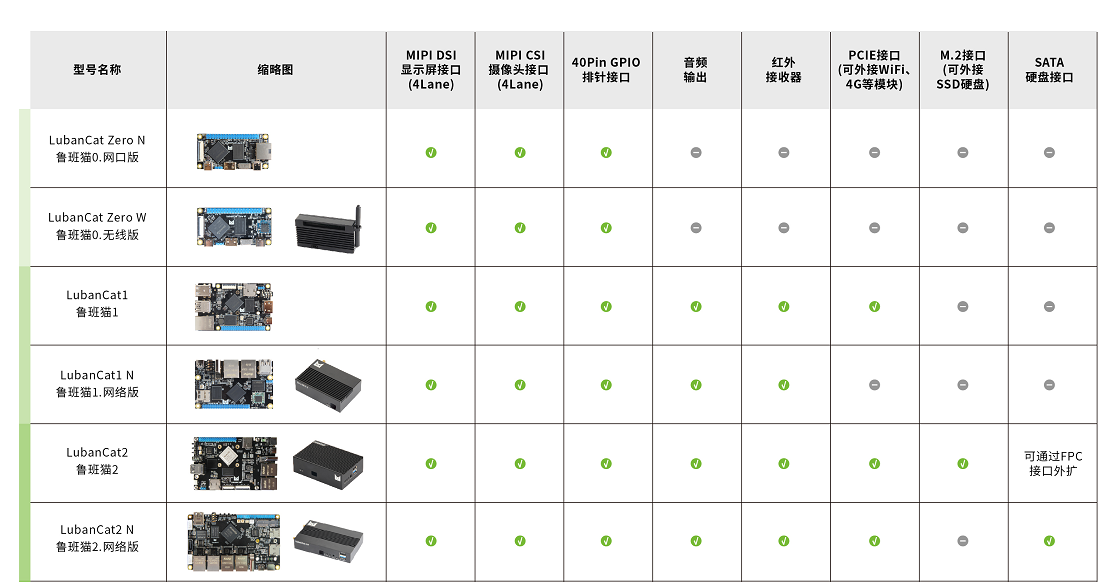

2.1. LubanCat Series Hardware Comparison

../../_images/lubancat-choose-1.png
../../_images/lubancat-choose-2.png

The size of memory and eMMC marked in the above table is the capacity tested by the current sample. The specific capacity matching is subject to the actual sales. If you have capacity customization needs, you can consult Taobao customer service.
