1. 40PIN pin comparison diagram

The 40-Pin of the LubanCat-RK3588 series boards are not exactly the same, but they all have fixed common interfaces I2C, SPI, UART, and PWM. Their positions on the 40-pin are fixed, and the pin numbers and GPIO may be different, which need to be determined according to your actual needs.

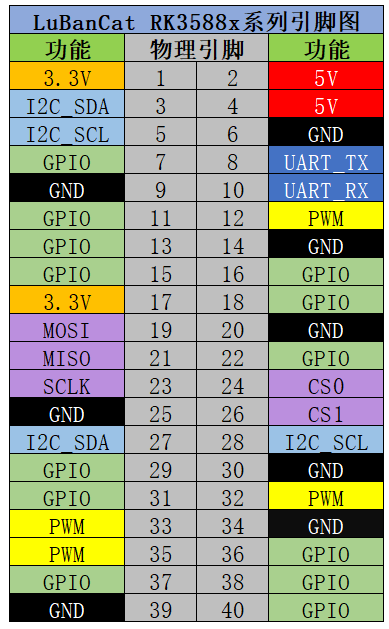

Basic 40Pin pin frame diagram

注解

Place your mouse on the image, right-click, and click New Tab to open the image to view the original high-definition image.

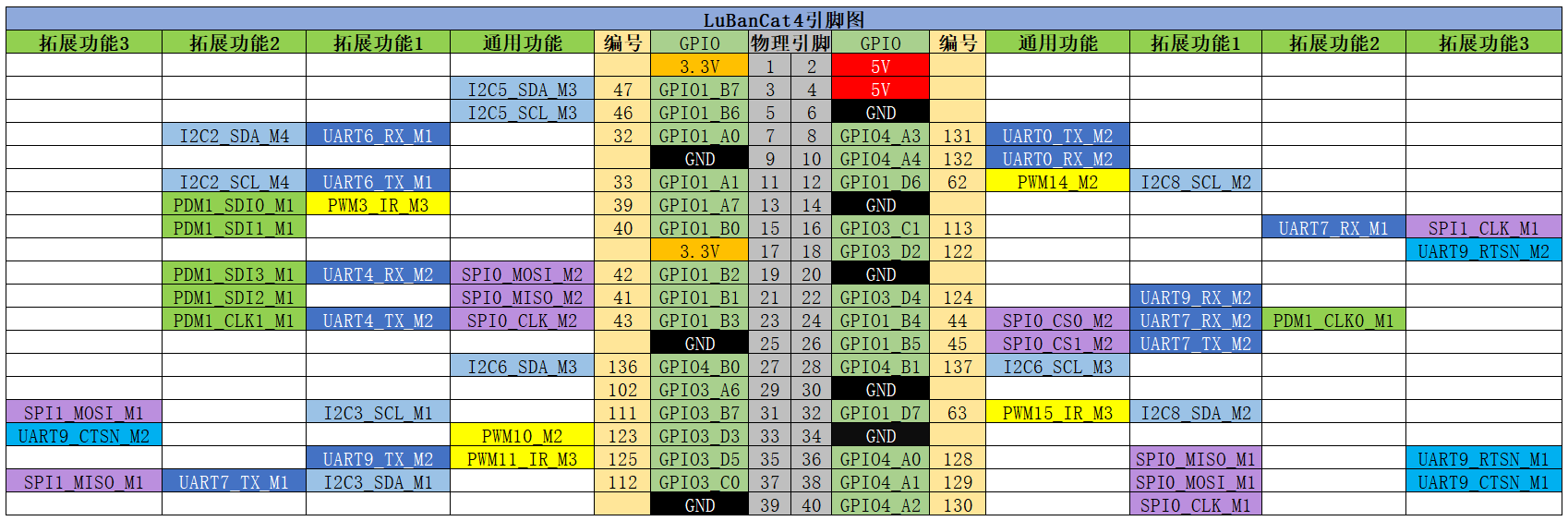

1.1. LubanCat-4

注意

Physical pins 3, 5, 27, and 28 of LubanCat-4 are fixed as I2C pins. These two i2c devices are also used by other devices. They can be used as GPIO after modifying the device tree.
